• Thin-bezel auto-dimming rearview mirror with HomeLink® ³² universal transceiver
• Smart Key System with Push Button Start; remote keyless entry with lock, unlock, panic, tailgate release and remote illuminated entry
• Power vertical rear window with defogger and privacy glass
• Acoustic laminated windshield
• Power windows with one-touch auto up/down and jam protection
• Front and rear LED maplights
• Illuminated center console storage bin and glove box
• Soft-touch instrument panel, center console and door surfaces
• Leather-wrapped shift knob
• Backup camera ¹⁵ with projected path
• Drive Mode Select (DMS) switch and dial
• Rear-seat air vents
• Fixed center console with gated shift lever, driving controls, four cup holders, and center storage bin
• Front 12V ² auxiliary power outlet
• Overhead console with rear window control, sunglasses storage and Safety Connect® ⁵⁶
• Electronic locking fuel door
• Front and rear assist grips

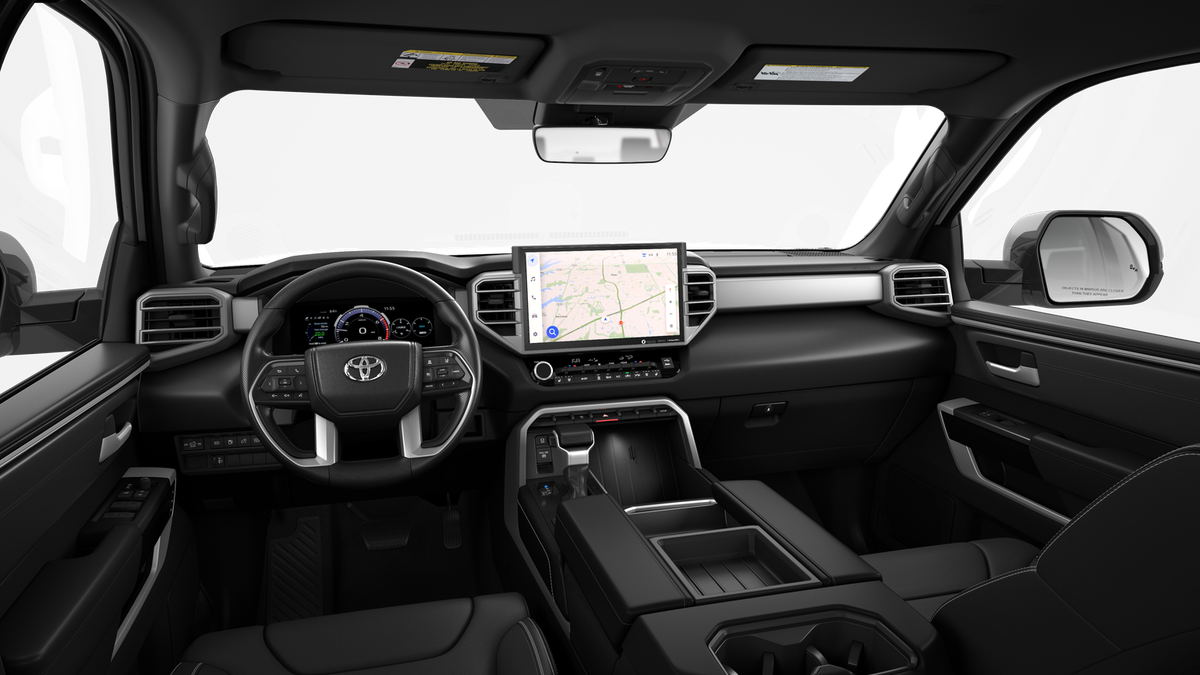

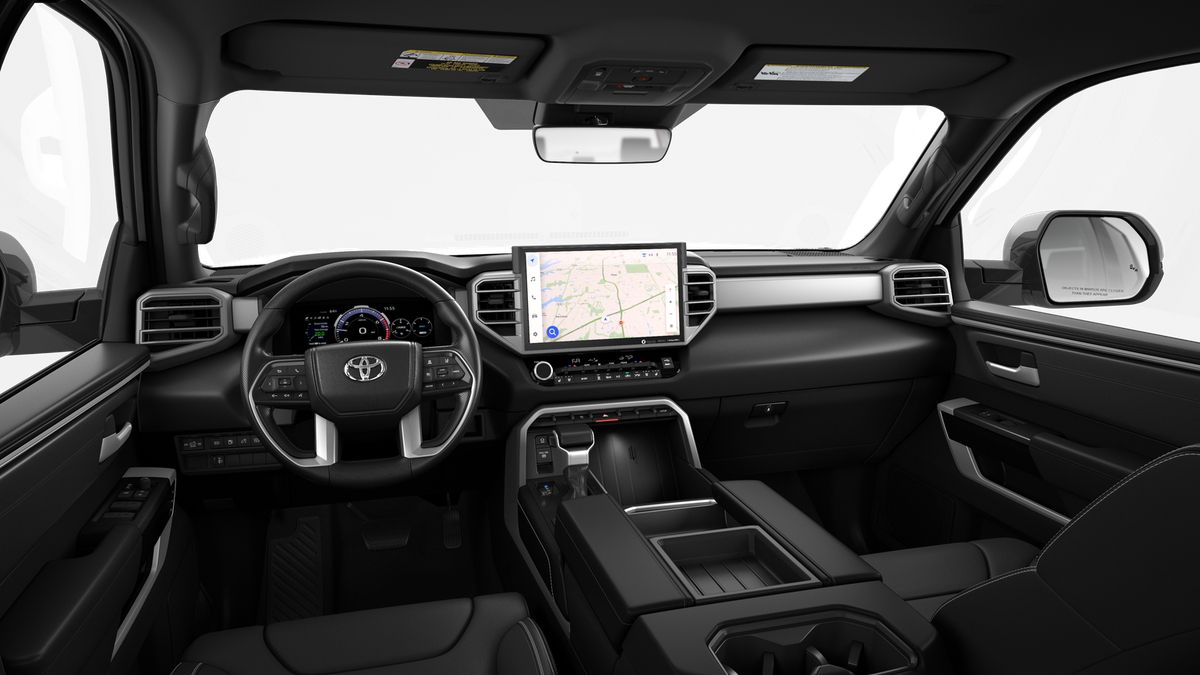

• 12.3-in. digital meter with selectable gauge display screens and fuel economy, Driver Assist, vehicle/trip information, and warning messages

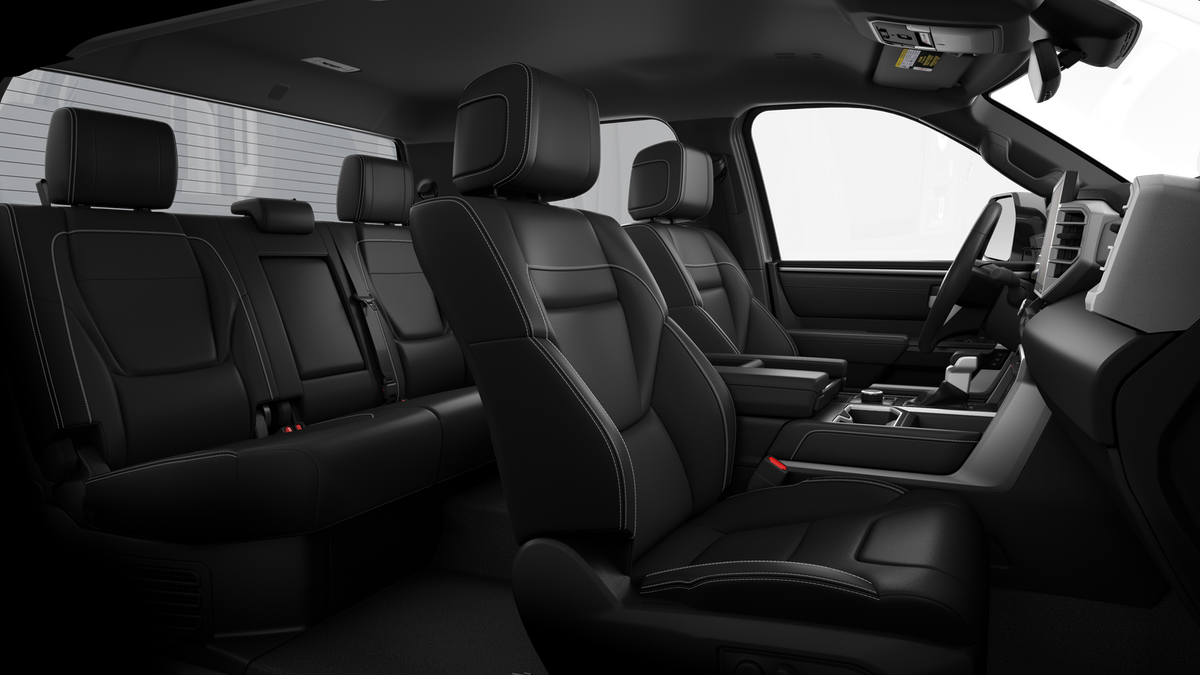

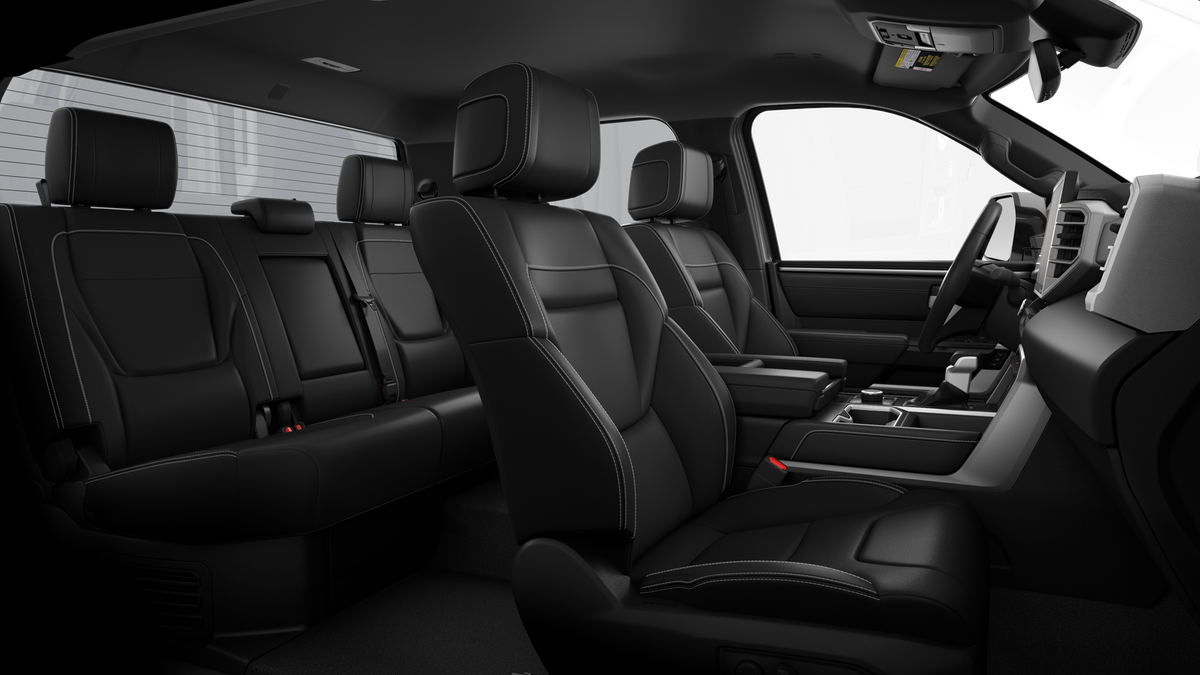

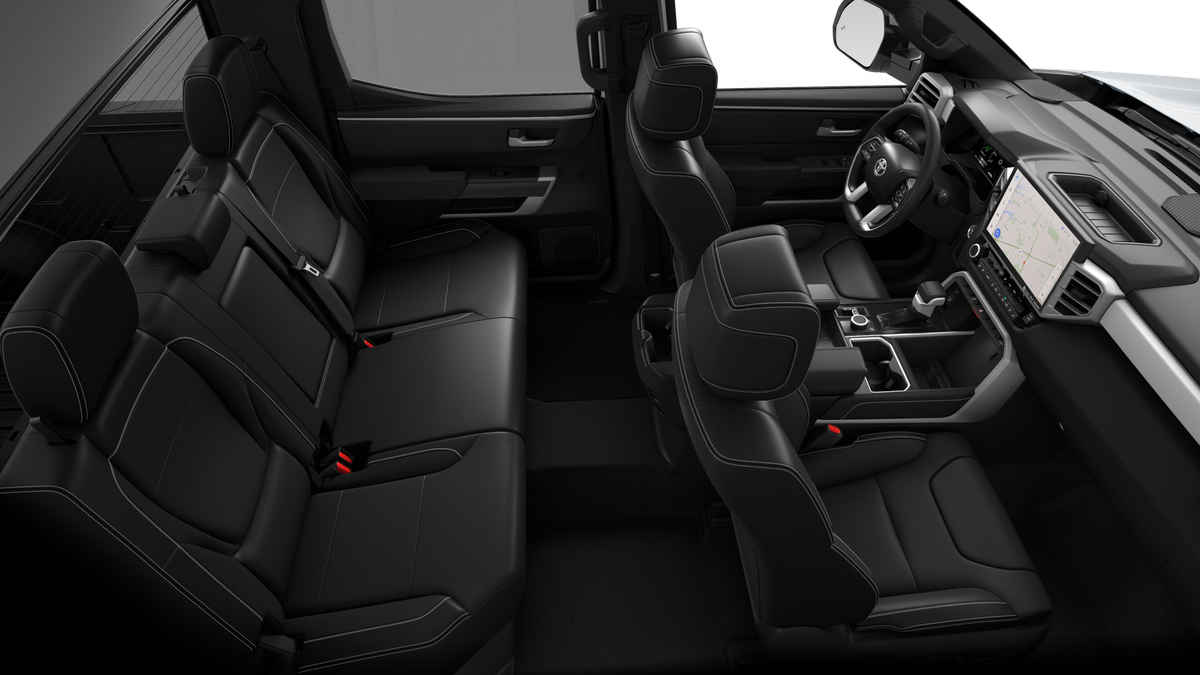

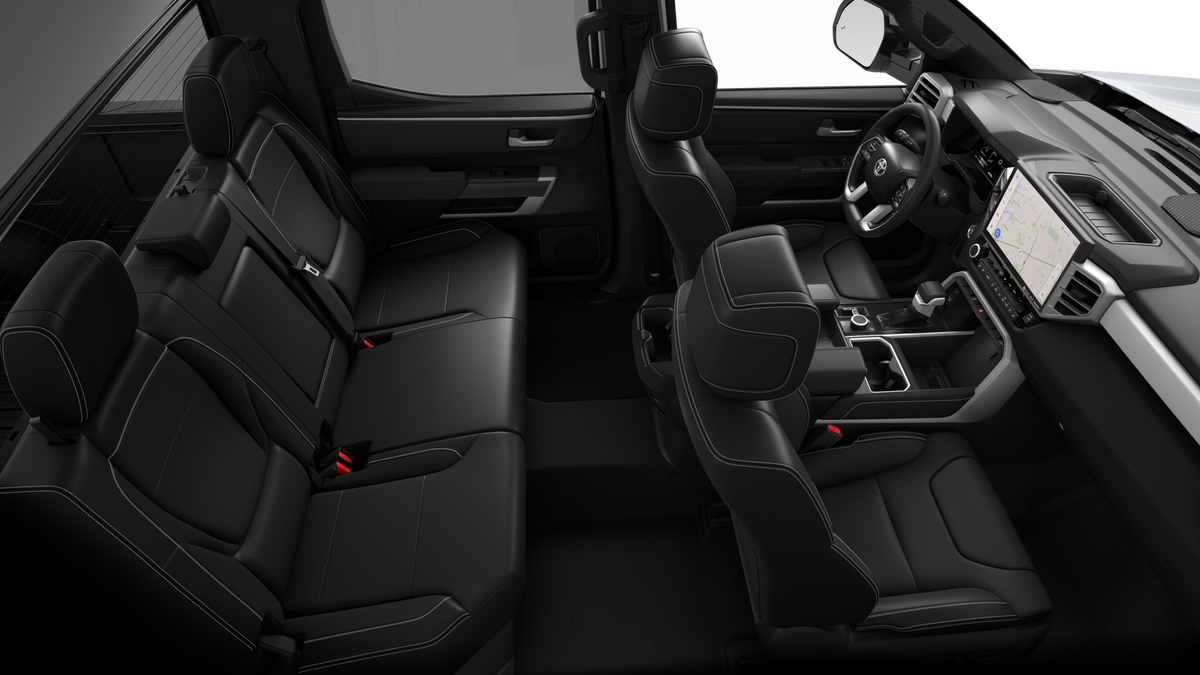

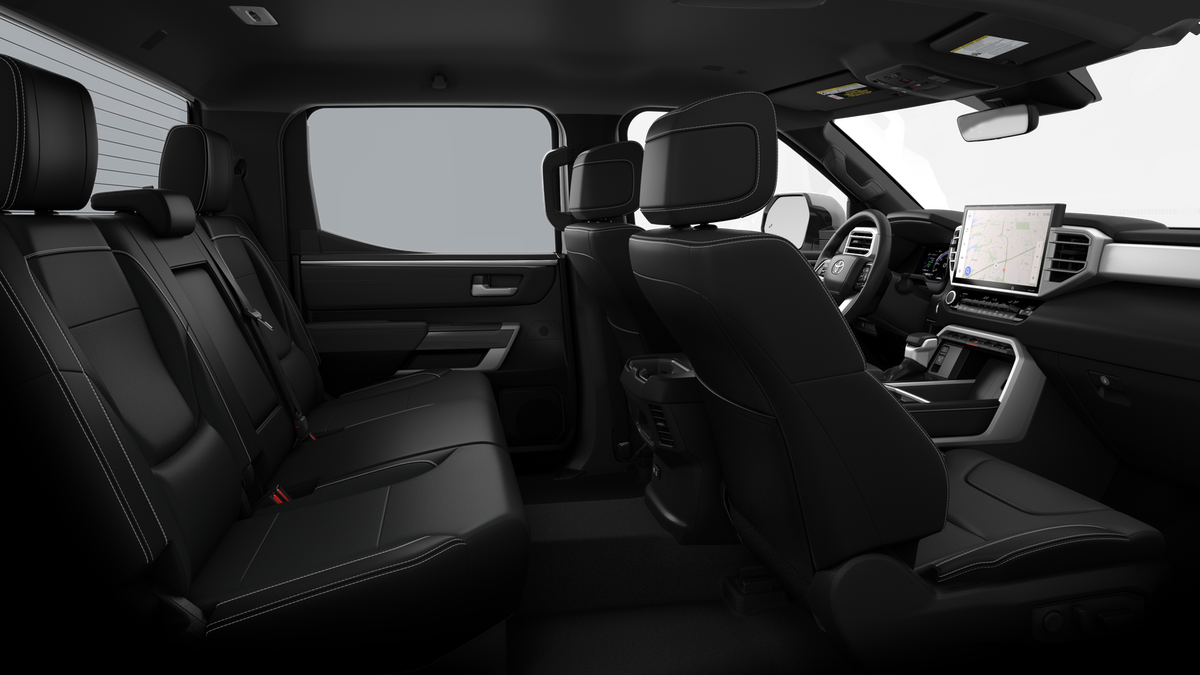

• Leather-trimmed seats with contrast stitching; 8-way power-adjustable driver and front passenger seats with power-adjustable lumbar support
• Driver's-seat memory function
• Heated front seats
• Heated and ventilated front seats

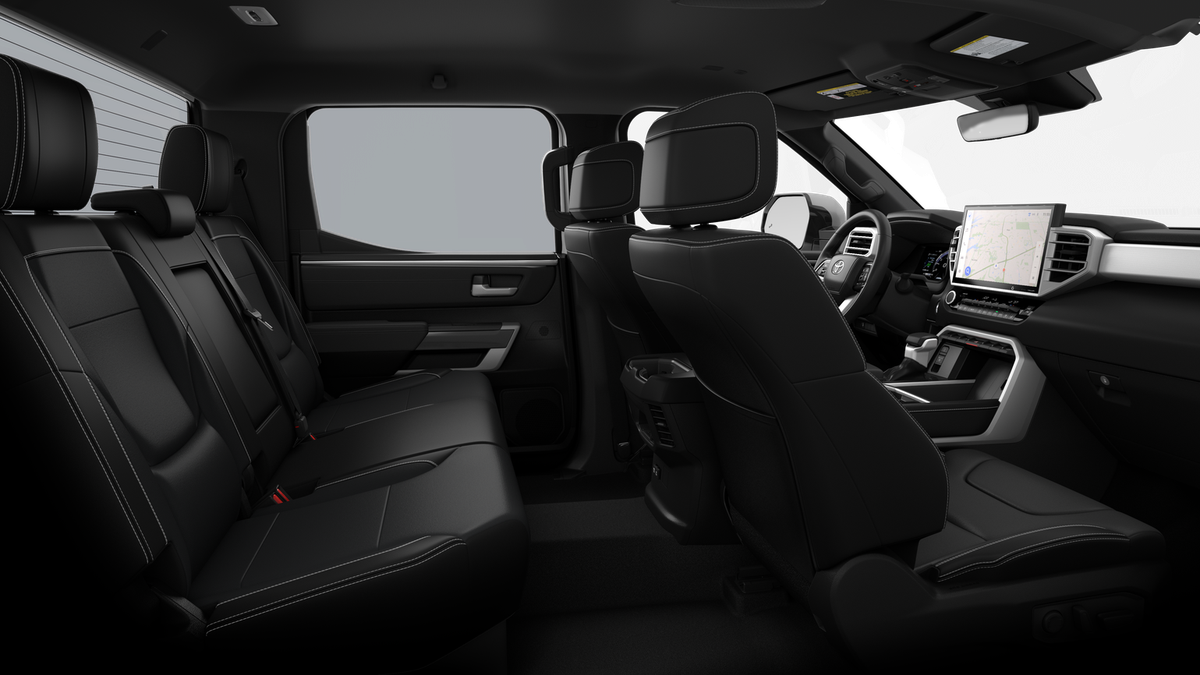

• 60/40 split, folding rear seat with center armrest and cup holders
• Dual zone automatic climate control with air filtration and individual temperature settings for driver and front passenger with S-Flow
• Leather-wrapped manual tilt/telescopic steering wheel with phone, audio, display/infotainment, and Driver Assist controls
• 9-speaker audio system

• Ignition System: Conventional 12V starter ²
• Fuel System: D-4ST direct-injection and port-injection fuel system
• Intake: Twin turbochargers with electric wastegate valve actuators and water-cooled intercooler
• Exhaust System: Stainless steel exhaust system
• Towing: Class-IV towing hitch receiver and wiring harness with 7-pin/4-pin connector ⁶⁵
• Towing: Integrated Trailer Brake Controller (ITBC) ³⁷with Multi-Information Display (MID) screen and trailer brake type, gain and manual trailer brake output controls ⁶⁵
• Towing: Trailer-Sway Control (TSC) ⁶⁹
• HV Electric Motor: Parallel hybrid system with permanent magnet synchronous motor/generator
• HV Electric Motor: Electric motor power: 48 hp (36 kW)
• HV Electric Motor: Electric motor torque: 184 lb.-ft. (250 N•m)
• HV Battery: 288V sealed Nickel-Metal Hydride (Ni-MH) battery ³⁴ with 1.87 kWh capacity
• Drivetrain: 4WDemand part-time 4-Wheel Drive with electronically controlled 2-speed transfer case (high/low ranges) and Automatic Limited-Slip Differential (Auto LSD) ⁸
• Drive Modes: Eco, Normal and Sport driving modes
• Drive Modes: TOW/HAUL driving modes ⁶⁵
• Body/Frame: Fully boxed high-strength steel ladder frame
• Body/Frame: Hydraulic cab mounts
• Body/Frame: Ultra-high-strength steel cabin construction with aluminum hood and front door panels
• Body/Frame: Active aero front spoiler
• Body/Frame: Active grille shutters
• Suspension: Independent double-wishbone front suspension; coil spring multi-link rear suspension
• Steering: Electric Power Steering (EPS); power-assisted rack-and-pinion
• Brakes: Power-assisted, ventilated 13.9-in. front disc brakes with opposed dual-piston brake calipers; ventilated 13.6-in. rear disc brakes with single-piston calipers
• Brakes: Electronically Controlled Braking (ECB) system with integrated regenerative braking
• Brakes: Electric Parking Brake (EPB) ²²

• Toyota Safety Sense™ 2.5 (TSS 2.5) ⁷⁰ Pre-Collision System with Pedestrian Detection (PCS w/PD), ⁵⁰ Full-Speed Range Dynamic Radar Cruise Control (DRCC), ²⁸ Lane Departure Alert with Steering Assist (LDA w/SA), ³⁹ Lane Tracing Assist (LTA), ⁴⁰ Automatic High Beams (AHB), ⁷ Road Sign Assist (RSA) ⁵⁵
• 3-point seatbelts for all seating positions; driver-side Emergency Locking Retractor (ELR) and Automatic/Emergency Locking Retractor (ALR/ELR) on all passenger seatbelts
• Blind Spot Monitor (BSM) ¹⁴ with Rear Cross-Traffic Alert (RCTA) ⁵² and Trailer Merge Warning
• Front and Rear Parking Assist with Automatic Braking ⁴⁶
• Eight total airbags, including driver and passenger side, knee and curtain airbags ³
• LATCH (Lower Anchors and Tethers for CHildren) includes lower anchors on all outboard second-row rear seats
• Child-protector rear door locks and power window lockout control
• Star Safety System™ — includes Vehicle Stability Control (VSC), ⁷⁵ Traction Control (TRAC), Anti-lock Brake System (ABS) with Electronic Brake-force Distribution (EBD), Brake Assist (BA) ¹³ and Smart Stop Technology® (SST) ⁵⁹
• Drive-Start Control (DSC)
• Hill Start Assist Control (HAC) ³⁰
• Tire Pressure Monitor System (TPMS) ⁶⁸
• Driver and front passenger headrests

Nightshade Package

Nightshade Package

• Matte-black 20-in. alloy wheels


• Black overfenders and rear bumper


• Gloss-black window molding mirror caps and tailgate handle


• Semi-black Tundra door badge and 4x4 badge (if equipped)

Door Edge Guards: Stainless Steel

Help prevent door edge dings and chipped paint with this protective finishing touch.
• Thermoplastic-coated stainless steel is precisely matched to the exterior finish

JBL® Premium Audio

12-speaker JBL® ³⁸ Premium Audio

50 State Emissions

50 State Emissions

Spray-On Bedliner

Get the spray-on bedliner that’s as tough and durable as your Tundra. Protect your bed from damage with this permanently bonded fixture.
• New Toyota-exclusive softer material to keep items from sliding in the bed
• Toyota quality standards assure uniform thickness and a consistent texture
• Textured surface is designed to prevent cargo from sliding
• No lost cargo space minimal added weight
• Features a Tundra logo
• Proprietary application method helps create a straight and crisp edge
• Fully warranted; repairs completed quickly and easily at a Toyota dealership

Limited Power Package

Limited Power Package

• Qi-compatible wireless smartphone charging ⁵¹


• 400W/120V ¹ rear-seat AC power supply


• 400W/120V ¹ bed-mounted AC power supply


• LED bed lights

Mini Tie-Downs with Hooks

Organize and secure your equipment with these adjustable mini tie-downs with hooks composed of sturdy black nylon for durability.
• Each mini tie-down measures 2 by 1 inches and holds a maximum load of 110 lbs. each—a total of 220 lbs. for the set of two
• Tie-downs slide along the bed rail system and are held firmly in place by an inner tension spring

Predator Steps

A highly functional and stylish upgrade for your truck the predator tube step complements the Tundra's rugged design and improves access to the cab.
•Black powder-coated finish
•Drop steps for easy access
•Durable 6061 aluminum construction is chip-and rust-resistant

Panoramic Roof

Power tilt/slide panoramic roof with power sunshade

TRD Front Skid Plate

Beef up the aggressive stance of your Tundra while protecting its underbody from off-road hazards with the TRD skid plate.
•Prevents damage to underbody from rocks branches ice chunks and other types of road debris
•Easy no-drill installation uses vehicle's existing attachment mounts
•Rigorously tested to maximize protection and prevent vibration stress and noise
•Won't interfere with or block cooling system
•Provides unobstructed access to all maintenance points
•Made from stamped and formed 1/4-in thick aluminum
•Red TRD lettering helps provide a sporty look

Heated Leather-Wrapped Steering Wheel

Heated leather-wrapped steering wheel

All-Weather Floor Liners

Engineered to precisely fit your Tundra and made from durable weather-resistant material.
• Liners feature channels to better hold moisture

Hard Tri-Fold Tonneau Cover

Featuring a sleek trifold design the hard tonneau cover is easy to install and remove for storage. Use it to deter theft of your gear and other valuables as well as protect them from inclement weather.
• Self-latching system allows for easy-cover operation and removal
• Advanced seal-and-channel system has drain hoses at the cab-end helping to keep water out of the bed
• Innovative mounting system allowing for full access to bed rails
•Uses Deck Rail System for installation and is weather resistant

• STAINLESS STEEL DOOR EDGE GUARDS (TMS)

  50 STATE EMISSIONS

  MINI-TIE DOWN (TMS)

  PREDATOR DROP STEP (TMS)

  PANORAMIC SUN ROOF

  TRD FRONT SKID PLATE (TMS)

  HEATED LEATHER STEERING WHEEL

  ALL WEATHER FLOOR LINERS (TMS)

  TRI-FOLD TONNEAU COVER (TMS)

• Mileage
• Fuel Economy Est-Combined (MPG): 20
• EPA Fuel Economy Est - City (MPG): 19
• EPA Fuel Economy Est - Hwy (MPG): 22
• Traction Battery
• Gross Traction Battery Capacity (kWh): 1.9
• Weight Information
• Base Curb Weight (lbs): 6010
• Gross Vehicle Weight Rating Cap (lbs): 7615
• Gross Combined Wt Rating (lbs): 17600
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 11170
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1117
• Maximum Trailering Capacity (lbs): 11170
• Suspension
• Suspension Type - Front: Double Wishbone
• Suspension Type - Rear: Multi-Link
• Axle Type - Front: Independent
• Axle Type - Rear: Rigid Axle
• Axle Ratio (:1) - Front: 3.31
• Axle Ratio (:1) - Rear: 3.31
• Brakes
• Brake Type: 4-Wheel Disc
• Brake ABS System: 4-Wheel
• Brake ABS System (Second Line): 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.9
• Rear Brake Rotor Diam x Thickness (in): 13.6
• Tires
• Front Tire Size: P265/60HR20
• Rear Tire Size: P265/60HR20
• Spare Tire Size: Full-Size
• Wheels
• Front Wheel Size (in): 20 X 8
• Rear Wheel Size (in): 20 X 8
• Spare Wheel Size (in): Full-Size
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: Steel
• Steering
• Steering Type: Rack-Pinion
• Turning Diameter - Curb to Curb (ft): 48.6
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 32.2
• Exterior Dimensions
• Wheelbase (in): 145.7
• Length, Overall (in): 233.6
• Width, Max w/o mirrors (in): 80.2
• Height, Overall (in): 78
• Ground Clearance, Front (in): 8.5
• Ground Clearance, Rear (in): 8.5
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 65.6
• Cargo Box Width @ Top, Rear (in): 58.7
• Cargo Box Width @ Floor (in): 58.7
• Cargo Box Width @ Wheelhousings (in): 48.7
• Cargo Box (Area) Height (in): 20.9
• Interior Dimensions
• Passenger Capacity: 5
• Front Head Room (in): 41
• Front Leg Room (in): 41.2
• Front Shoulder Room (in): 65
• Front Hip Room (in): 62.6
• Second Head Room (in): 38.5
• Second Leg Room (in): 41.6
• Second Shoulder Room (in): 62.4
• Second Hip Room (in): 60.5
• Summary

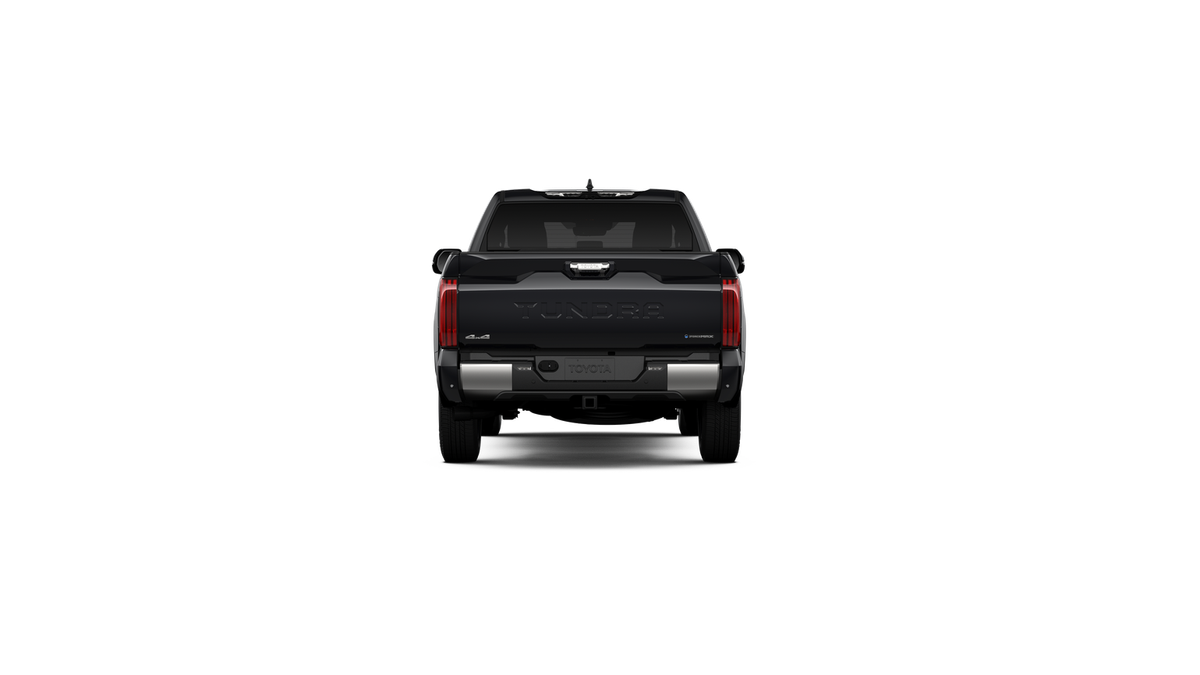

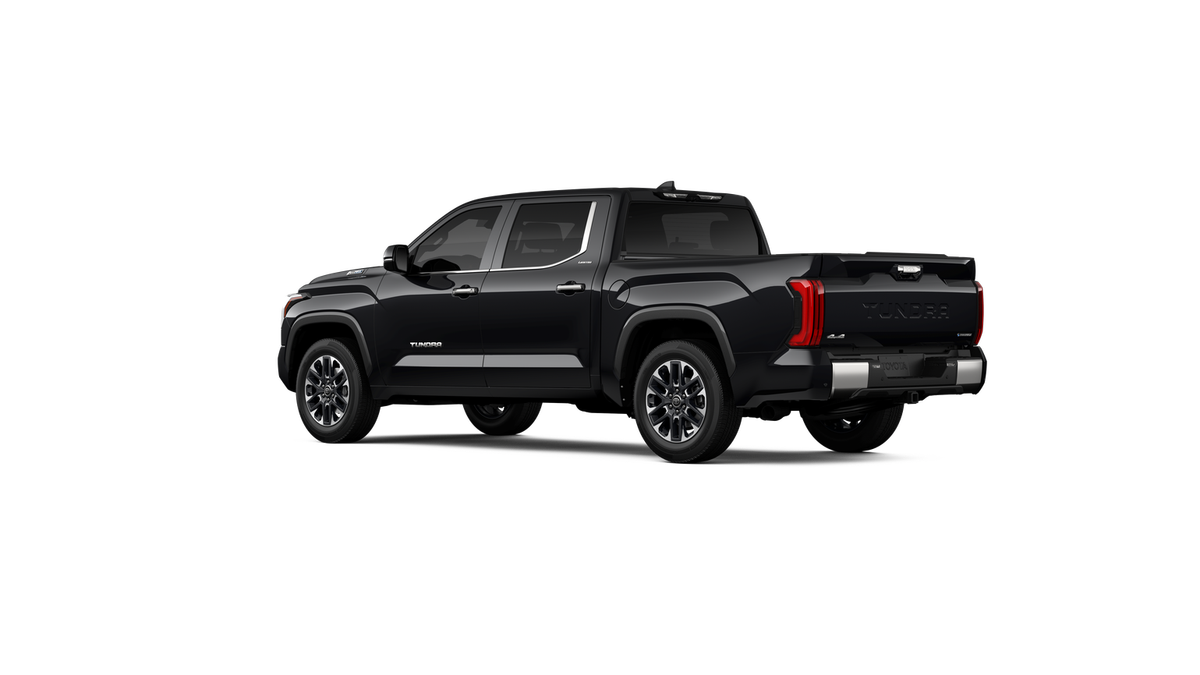

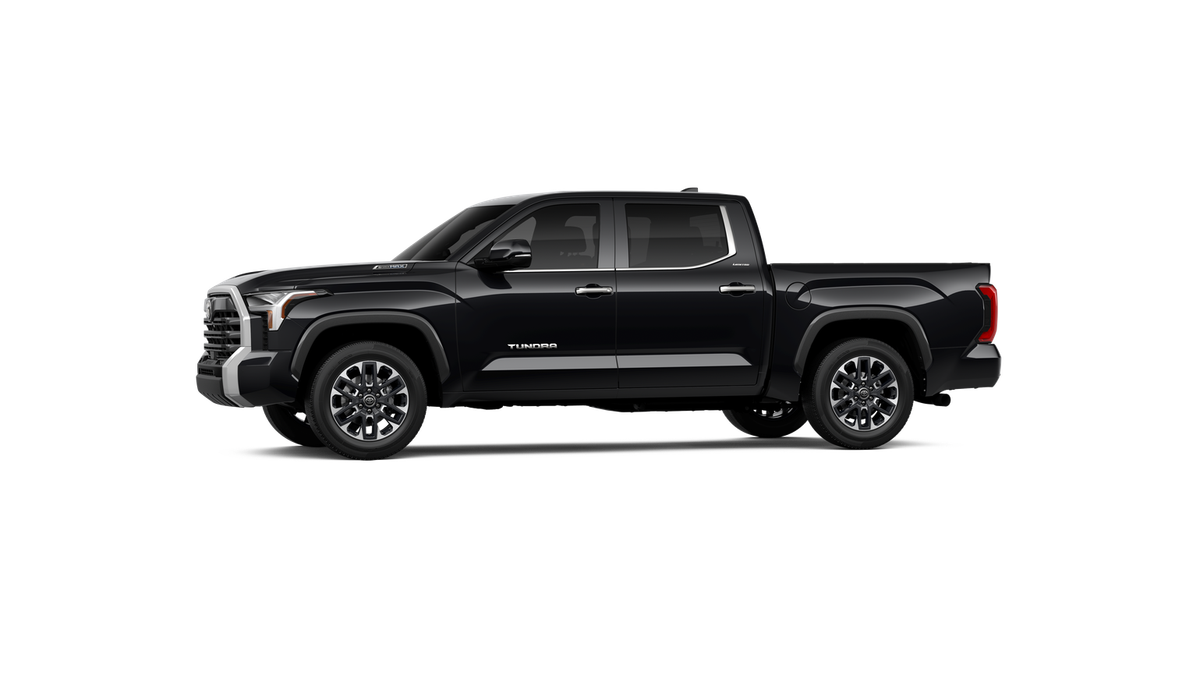

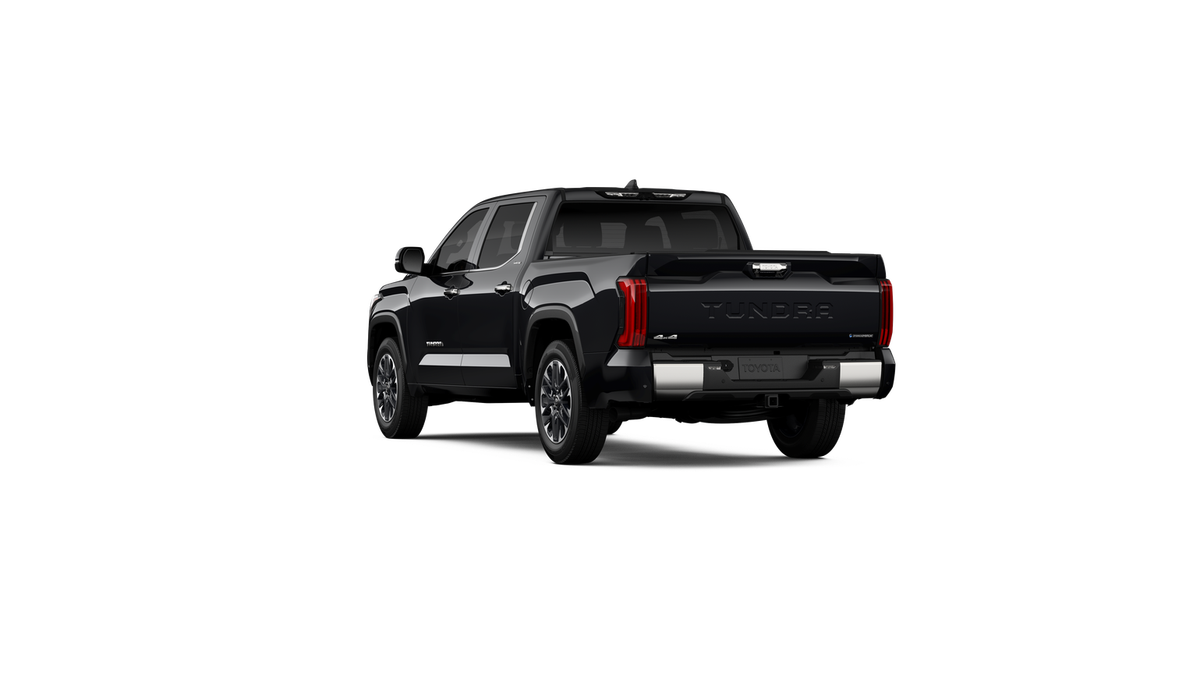

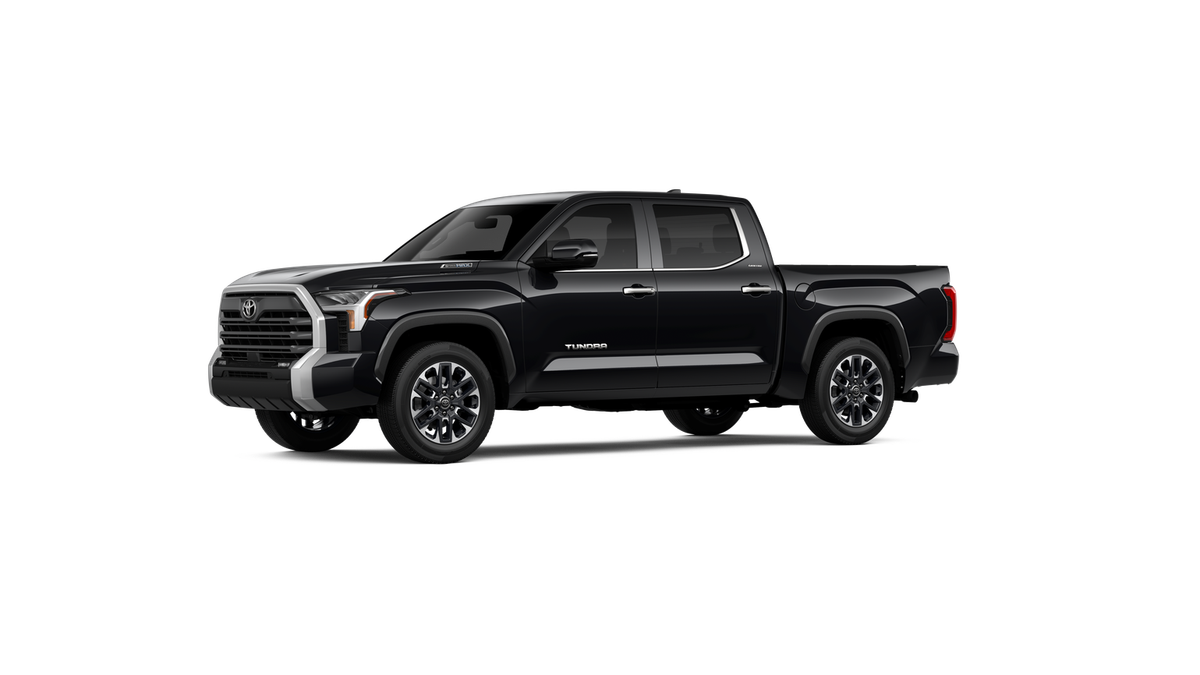

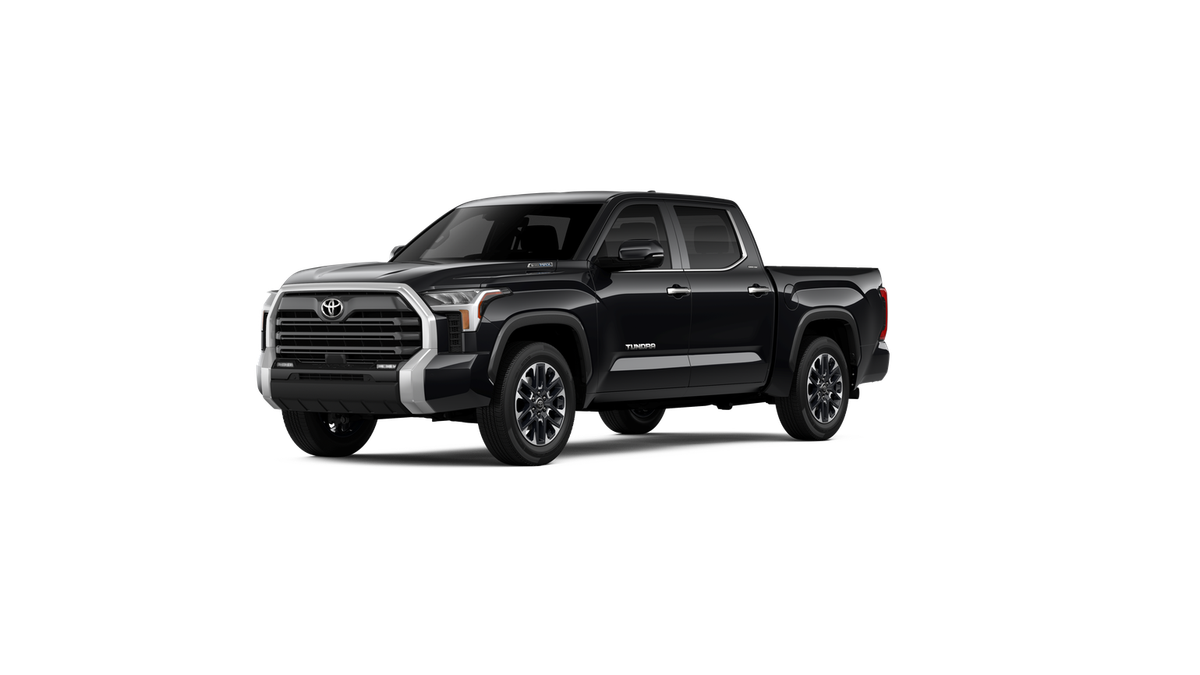

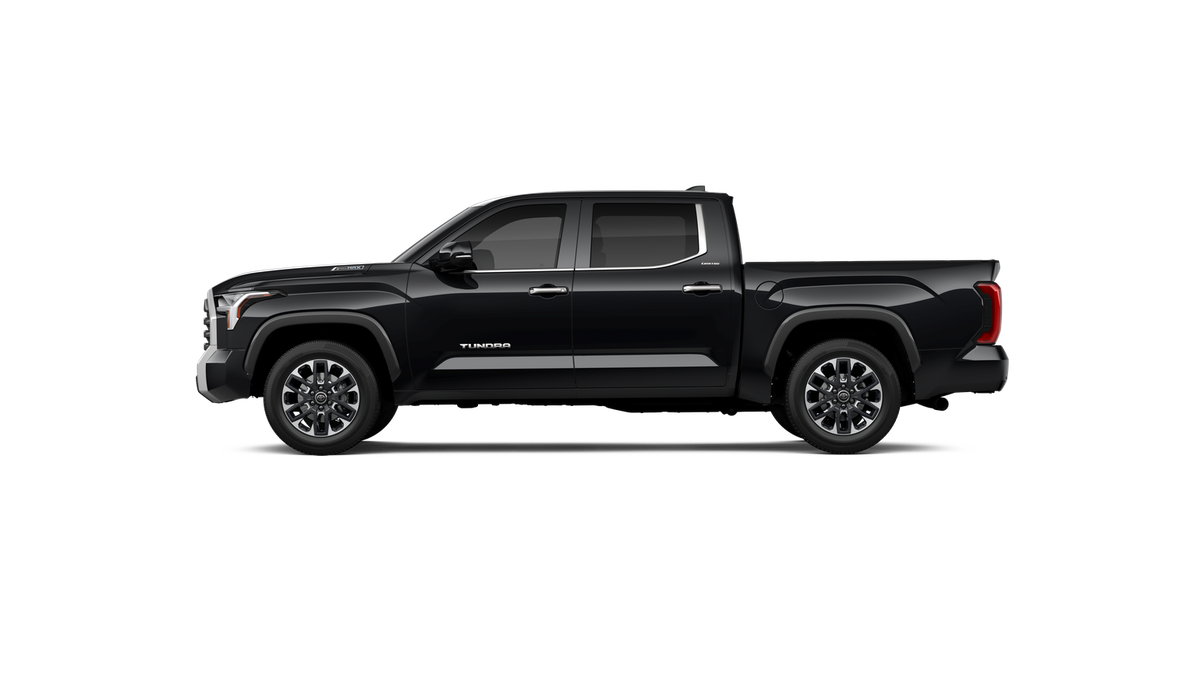

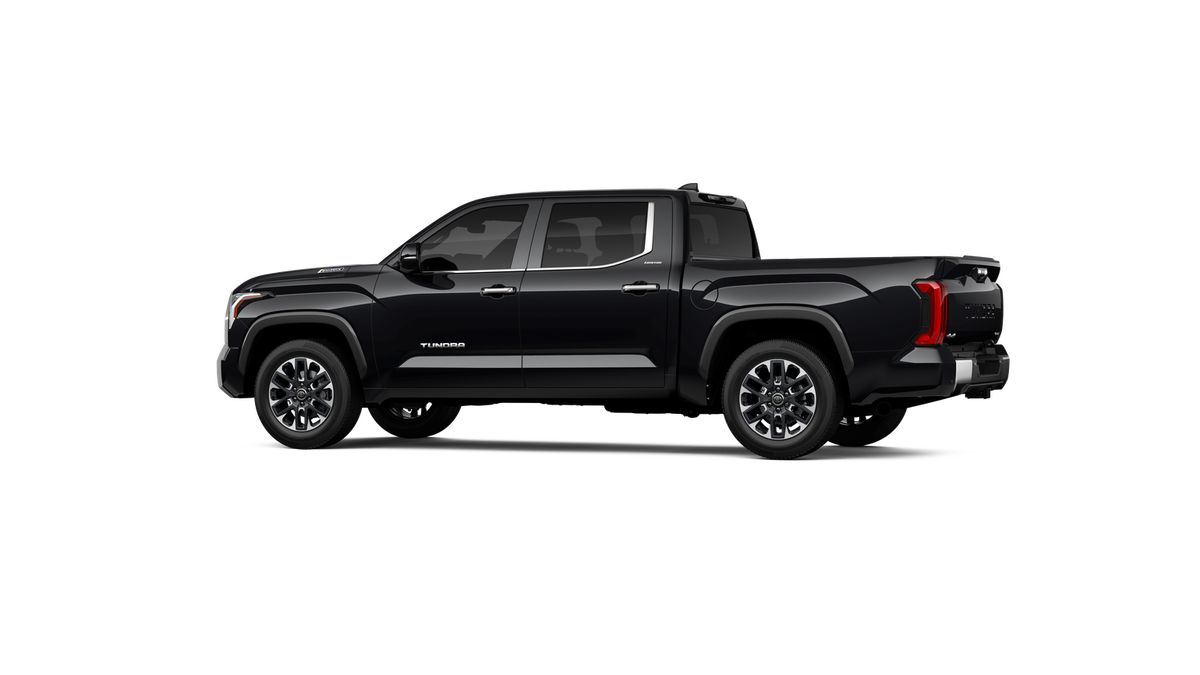

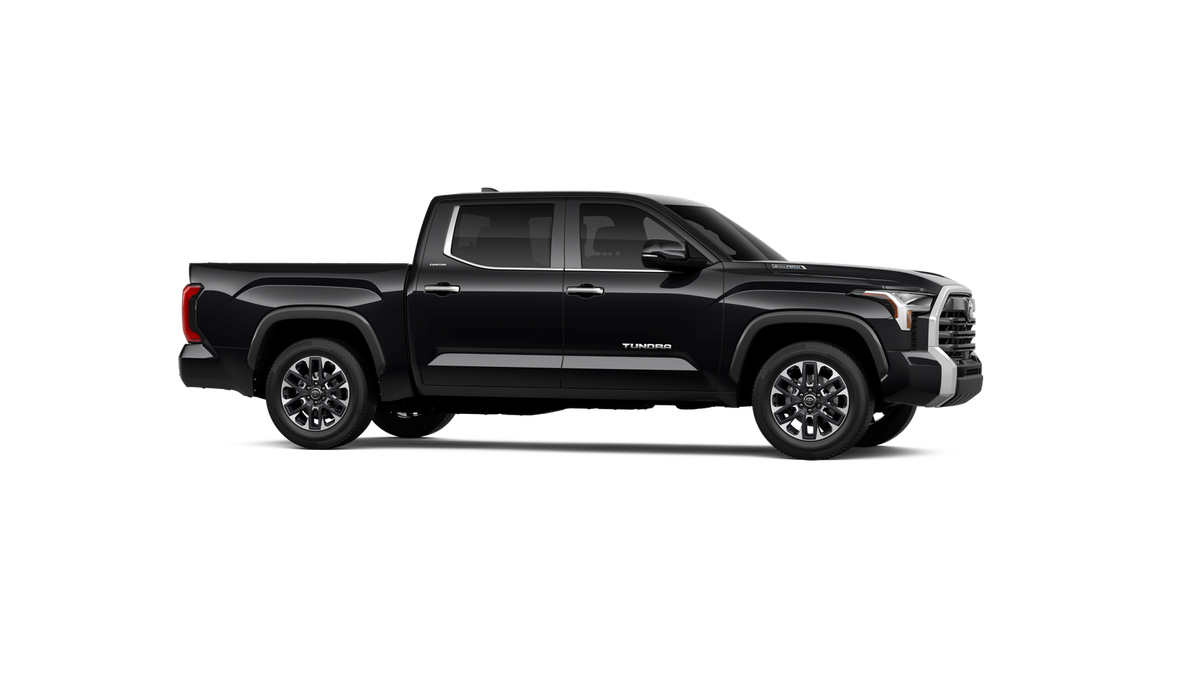

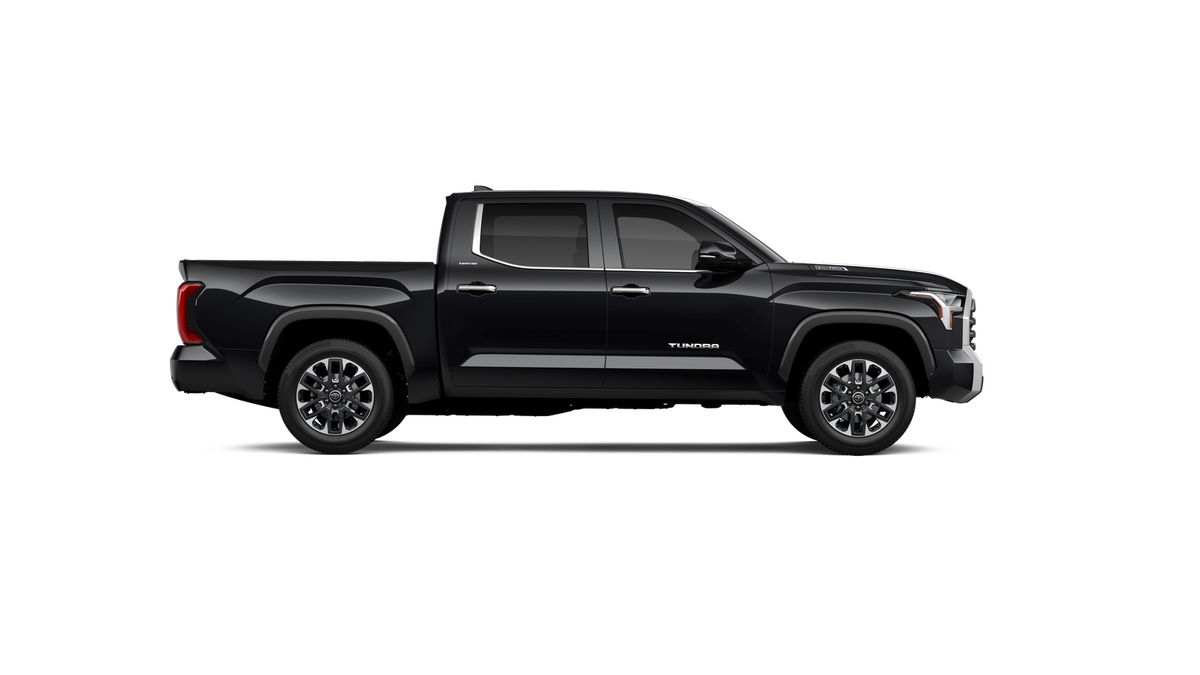

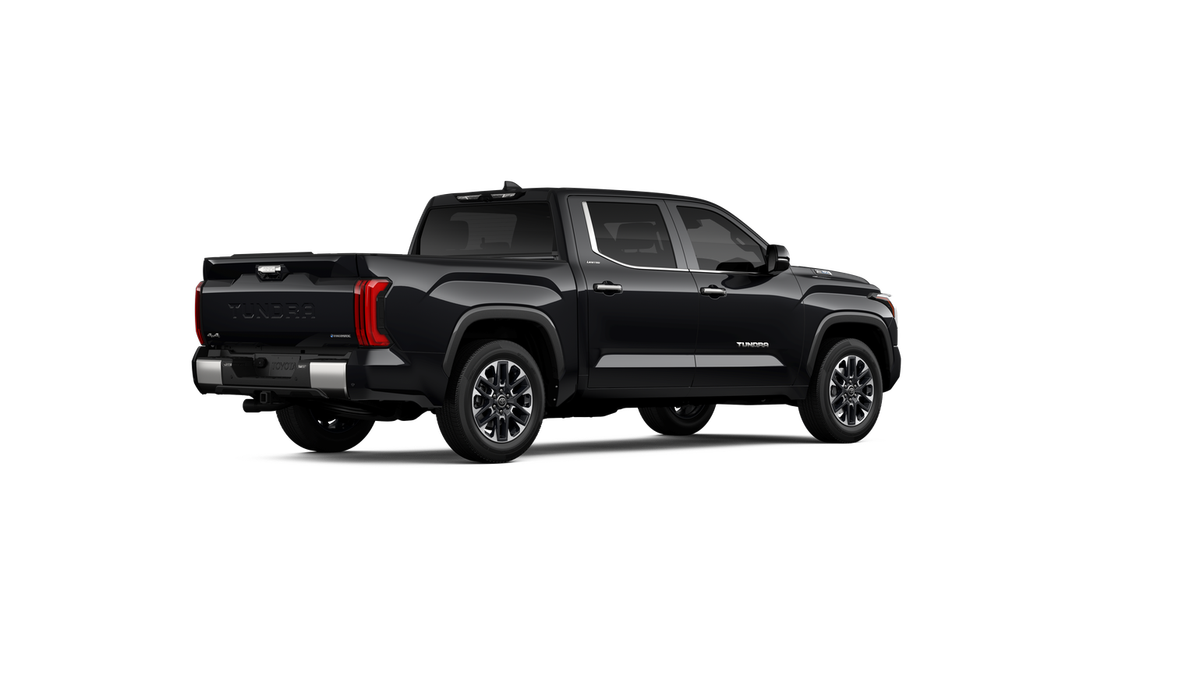

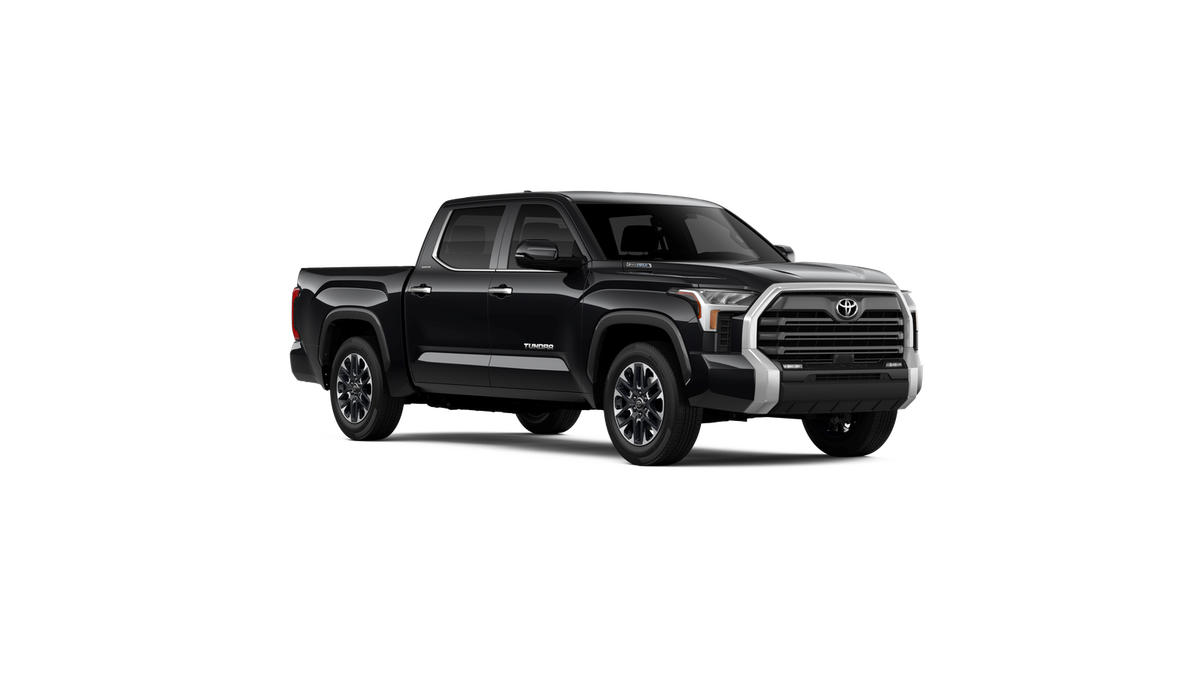

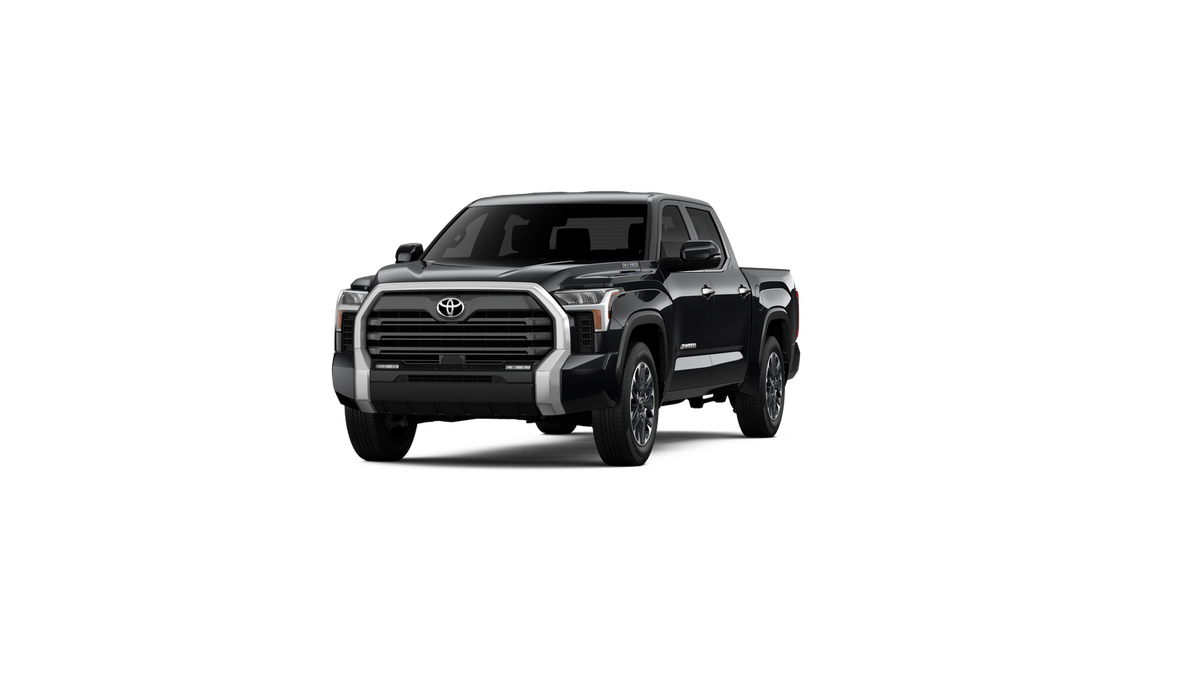

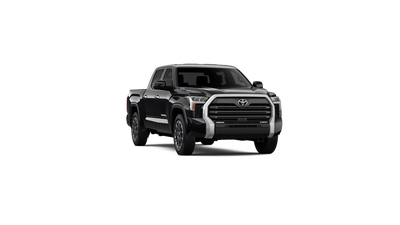

• Vehicle Name: Toyota Tundra 4WD
• Body Style: CrewMax
• Body Code: T
• Emissions
• EPA Greenhouse Gas Score: 4.0
• Tons/yr of CO2 Emissions @ 15K mi/year: 8.9
